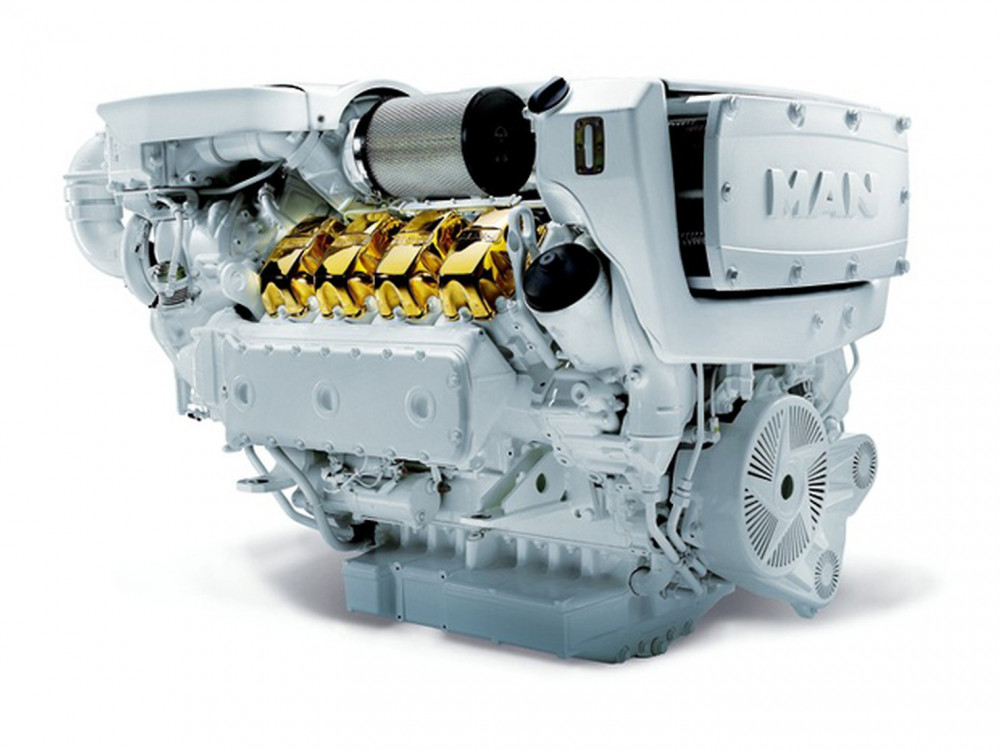

MAN Engines V8-1000 / V8 1200 / V8 1300

MAN V8-1000 / V8-1200 / V8-1300

A whole fleet of MAN marine diesel engines is waiting for this command. The powerful common rail diesel engines from 730  hp to 1,800  hp impress with their extraordinary dynamics, their extreme running smoothness, economy and their trend-setting environm

Στοιχεία προϊόντος

Characteristics

  • Cylinders and arrangement:
    8 cylinders in 90° V arrangement
  • Operation mode:
    4-stroke diesel engine, watercooled
  • Turbocharging:
    Turbocharger with charge air intercooler and waste gate (1-stage: V8-1000, 2-stage: V8-1200)
  • Number of valves:
    4 valves per cylinder
  • Fuel system:
    Common Rail direct fuel injection with electronic control
  • Engine lubrication:
    Closed system with forced feeding, oil cooling and filtering
  • Type of cooling:
    Plate heat exchanger, seawater cooled
  • Engine control:
    Electronic injection control (EDC) Electronic engine monitoring including diagnostic unit
  • Fuel:
    DIN EN 590

Technical features V8-1000 and V8-1200

  • Type designation
    V8-1000
    V8-1200
  • Displacement l
    16.16
    16.16
  • Maximum output to DIN ISO 3046-1 kW (hp)
    735 (1,000)
    882 (1,200)
  • Rated speed rpm
    2,300
    2,300
  • Maximum torque Nm
    3,340
    4,010
  • at speed rpm
    1,300 – 2,100
    1,200 – 2,100
  • Absolute fuel consumption at rated power 1) l/h
    199
    240
  • Classifiable
    -
    -
  • Exhaust gas status
    IMO Tier II, EPA Tier 3,
    RCD 2013/53/EC,
    RCD 94/25/EC, 97/68/EC
    IMO Tier II, EPA Tier 3 2),
    RCD 2013/53/EC,
    RCD 94/25/EC, 97/68/EC

Dimensions V8-1000 and V8-1200

  • Type designation
    V8-1000
    V8-1200
  • A-Overall width mm
    1,153
    1,153
  • B-Overall width mm
    1,745
    1,745
  • C-Overall width mm
    1,177
    1,222
  • D-Top of engine to crankshaft centre mm
    765
    811
  • E-Length of engine from front end to edge of flywheel housing mm
    1,243
    1,262
  • Average weight of engine ready for installation (dry) kg
    1,780
    1,880



Technical features V8-1300

  • Type designation
    V8-1300
  • Displacement l
    16.16
  • Maximum output to DIN ISO 3046-1 kW (hp)
    956(1300)
  • Rated speed rpm
    2,300
  • Maximum torque Nm
    4,350
  • at speed rpm
    1,200 – 2,100
  • Absolute fuel consumption at rated power 1) l/h
    -
  • Classifiable
    -
  • Exhaust gas status
    EPA Tier 3 recreational,
    IMO Tier II,
    RCD 2013/53/EC, 97/68/EC

Dimensions V8-1300

  • Type designation
    V8-1300
  • Bore
    128
  • Stroke
    157
  • Engine length
    1736
  • Engine width
    1153
  • Engine height
    1222
  • Weight (dry)
    1880
  • Injection system
    Common Rail
