MAN Engines V12-2000

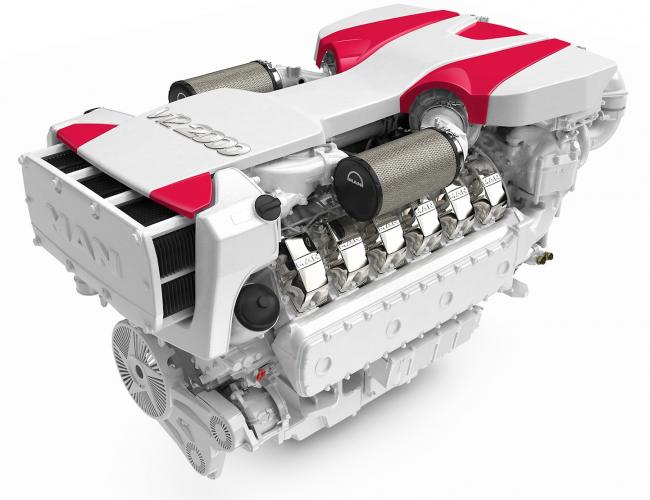

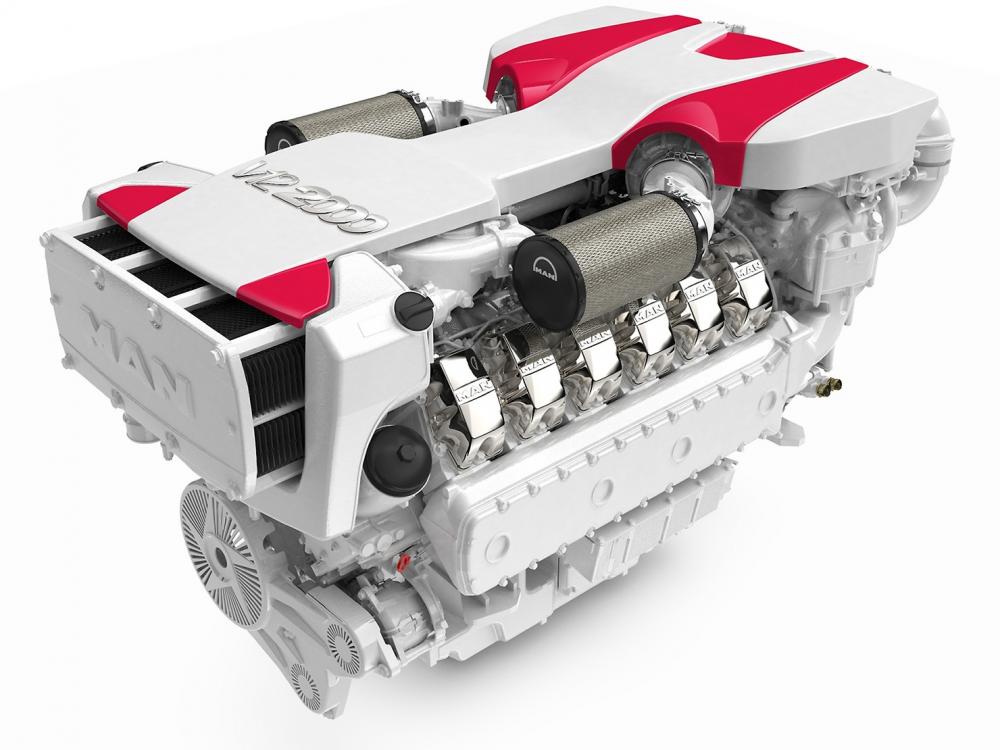

MAN V12-2000

The MAN V12-2000 is the only twelve-cylinder V-engine with 2,000 hp (1,471 kW) to date, which generates that power from 24 litres of displacement.

Product details

Characteristics

  • Cylinders and arrangement:
    12 cylinders in 90° V arrangement
  • Operation mode:
    4-stroke diesel engine, watercooled
  • Turbocharging:
    Turbocharger with charge air intercooler and waste gate
  • Number of valves:
    4 valves per cylinder

Technical features V12-2000

  • Type designation
    V12-2000
  • Displacement l
    24.24
  • Maximum output to DIN ISO 3046-1 kW (hp)
    1471(2000)
  • Rated speed rpm
    2,300
  • Maximum torque Nm
    6,500
  • at speed rpm
    1,200 – 2,100
  • Absolute fuel consumption at rated power 1) l/h
    -
  • Classifiable
    -
  • Exhaust gas status
    EPA Tier 3 recreational,
    IMO Tier II,
    RCD 2013/53/EC, 97/68/EC

Dimensions V12-2000

  • Type designation
    V12-2000
  • Bore
    128
  • Stroke
    157
  • Engine length
    2159
  • Engine width
    1153
  • Engine height
    1272
  • Weight (dry)
    2380
  • Injection system
    Common Rail
